Chemistry
Atomic Structure
Chemistry is all around us. Did you know that everything is made out of chemicals? Any reaction taking place in body cells of all living and non living organisms correlates with chemistry. In chemistry we study materials that make up the earth and universe. Chemistry is sometimes called the central science because it bridges other natural sciences, including physics, geology and biology. Therefore, when talking about chemistry, we are referring to life on Earth.
Atomic Structure
Introduction
An atom is the smallest indivisible particle of an element that takes part in chemical changes. Atoms are the building blocks of matter. All solids, liquids, and gases are made of atoms fitted in different ways. In this chapter, you will learn about the atom, sub-atomic particles, electronic arrangements, and atomic number, mass number and isotopy. By the end of this chapter, you should be able to explain Dalton’s contribution to atomic structure, explain the modern concept of Dalton’s atomic structure, identify subatomic particles in an atom, explain the properties of each particle in an atom, determine the maximum number of electrons in the shells, draw energy shell diagrams, relate atomic number with the number of protons, calculate the mass number of an atom from the number of protons and neutrons, and explain the concept of isotopy
The Atom
When you were in form one you learned in chapter five that matter is made up of small, indivisible particles. Everything around us is made of extremely small particles. These particles are either molecules or atoms
The present day chemistry is built on the foundations of the Atomic Theory. The idea that elements are made up of atoms is called the Atomic Theory. An English chemist, John Dalton was the first to put forward the Atomic Theory, which for most of the 19th century stated that atoms were hard, extremely small, indivisible and spherical particles like minute lead shots
Dalton Contribution to Atomic Structure
Explain Dalton contribution to atomic structure
The Greek philosopher Democritus (460-370 BC) believed that matter was indestructible and that it is made up of tiny particles called atoms. Our modern understanding is based on the Atomic Theory which was put forward by John Dalton in 1808. His theory re-introduced the ideas of Democritus and other Greek philosophers who suggested that all matter was infinitely divided into very small particles called atoms. These ideas were not widely accepted at that time. They were only revived when Dalton developed them further and experimental science was able to back them up with practical observations.
The Atomic Theory goes back to ancient Greeks, yet we always talk today about Dalton's Atomic Theory. There is a good reason for this. The reason is that, while Greeks put forward the idea that atoms exist they did nothing more. They left the idea vague and untested. Dalton changed this vague imaging into a set of concrete suggestions about atoms which could be tested by experiment. This change from vagueness to precision and experimental test justifies his claim to the theory.
Dalton’s Atomic Theory contains the following main ideas:
- Matter is made up of small, indivisible particles called atoms.
- Atoms are indestructible and they cannot be created.
- Atoms of different elements have different weights and posses different properties.
- Atoms of different elements combine in small whole numbers to form ‘compound atoms’.
From the theory, it is observed that each atom has its own mass and that chemical combination takes place between atoms and not fractions of atoms. Discoveries made in the 20th century, however, showed that certain parts of the theory must be modified. However, Dalton’s Theory was one of the great leaps of understanding of chemistry. It meant that we could explain many natural processes
The Modern Concept of Dalton’s Atomic Structure
Explain the modern concept of Dalton’s atomic structure
The Dalton's Atomic Theory was the first step towards the formation of Modern Atomic Theory. Dalton's Theory has been subjected to numerous experimentations that have led to some modifications to the theory. However, some ideas in his theory still hold strongly to date. The modifications to the theory include the following:
- The atom is no longer regarded as indivisible, or the smallest particle. Particles smaller than the atom; electrons, protons and neutrons are now known. However, the atom is still the smallest particle which can take part in a chemical reaction
- Atoms of the same element may not be all alike. Some elements have atoms with different atomic masses, for example, carbon 12 and carbon 14. These different atoms of the same element are called isotopes.
- In some few cases, atoms of different elements may have the same atomic mass. Both argon and calcium have atomic mass 40. Such atoms are called isobars
- "The compound atoms" of Dalton are known as molecules. A molecule is the simplest particle of matter which is capable of independent existence. Evidence is available where atoms of different elements combine in large integers. An example is in organic and silicon compounds
- Atoms are no longer regarded as indestructible. Radioactive atoms may get destroyed by spontaneous decay or by atomic fission
The atom is, therefore, the smallest particle of an element which is responsible for the chemical properties of that element, and which takes part in a chemical reaction.
Sub-atomic Particles
Sub-atomic Particles in an Atom
Identify sub-atomic particles in an atom
Dalton thought that atoms were solid, indivisible particles. But, as a result of work done mainly by Lord Rutherford, the idea has been greatly changed in recent years. According to Rutherford, the atom consists of 3 kinds of particles - protons, neutrons and electrons. These are called sub-atomic particles.

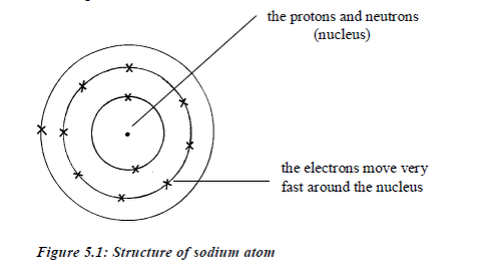

The centre of the atom is called nucleus. The nucleus contains a cluster of two sorts of particles, protons and neutrons. The nucleus is very small, occupying only about 1% of the volume of an atom. The rest of the atom is mostly empty space, with electrons spread out in it.
Electrons move around the nucleus in special paths called electron shells (orbits/or orbitals or energy levels). Protons and electrons have electric charges. Neutrons have no charges.All the particles in an atom are very light. Their masses are measured in atomic mass units rather than grams. The proton isa positively charged particle. Its mass is about equal to that of hydrogen atom. The neutron is has no charge, it is neutral. Its mass is about equal to that of hydrogen atom. The electron is negatively charged. Its charge is equal but opposite to the charge on the proton. It has a very small mass, about 1⁄1840 of the mass of the proton.
The Properties of each Particle in an Atom
Explain the properties of each particle in an atom

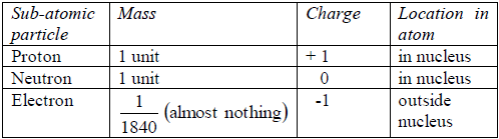

The properties of these particles are summarizedin the table below:
Table 5.1: Properties of sub-atomic particles
A single atom is electrically neutral (it has no electrical charge).This means that in any atom there must be equal numbers of protons and electrons. In this way, the total positive charge on the protons is balanced by the total negative charge on the electrons orbiting the nucleus. So, the charges must cancel.
Electronic Arrangements
Electronic arrangement refers to the manner in which electronsare arranged in an atom. An atom contains a central nucleuscontaining protons and neutrons, and a cluster of electronsrevolving in orbits around the nucleus. These electrons aregrouped in shells.
A Maximum Number of Electrons in the Shells
Determine a maximum number of electrons in the shells
Niels Bohr (1913) put forward a theory of electron positioning which is still generally accepted and used until now for chemical purposes. Bohr's Theory on the arrangement of electrons in an atom can be summarized as follows:
- Electrons are in orbit around the nucleus of the atom.
- The electron orbits are grouped together in shells; a shell is a group of orbits occupied by electrons with approximately equal energy.
- The electrons in shells distant from the nucleus have higher energy than those in shells close to the nucleus.
- Electrons fill the shells starting with the first shell, which is closest to the nucleus. Shells are numbered 1, 2, 3, 4,98etc. outwards from the nucleus. The shells may be represented by the letters K, L, M and N respectively starting from the nucleus.
- The maximum possible number of electrons in a shell numbered n is 2 2n .
- The first shell can only contain up to 2 electrons. The second shell can contain a maximum of 8 electrons. The third shell can contain up to 18 electrons.
- In the outermost shell of any atom, the maximum number of electrons possible is 8.
- The outer electrons of some atoms can be removed fairly easily to form ions.
- Chemical bonding between atoms to form molecules involves the electrons in the outer shell only.

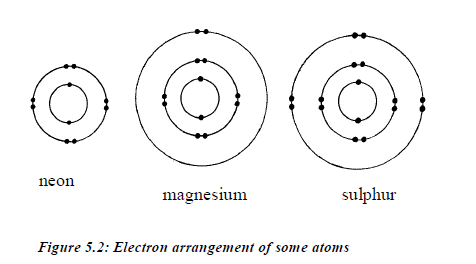

Electronic arrangement of some typical atoms is shown in figure 5.2.
The arrangement of electrons around the nucleus is also known as electronic configuration. This arrangement depends on the maximum number of electrons that can occupy a shell. An atom with 13 electrons will have the following electronic configuration: 2:8:3. This means that there are 2 electrons in the first shell, 8 electrons in the second shell and 3 electrons in the third shell.
The number and arrangement of electrons in the atoms of the first 20 elements are shown in table 5.2.

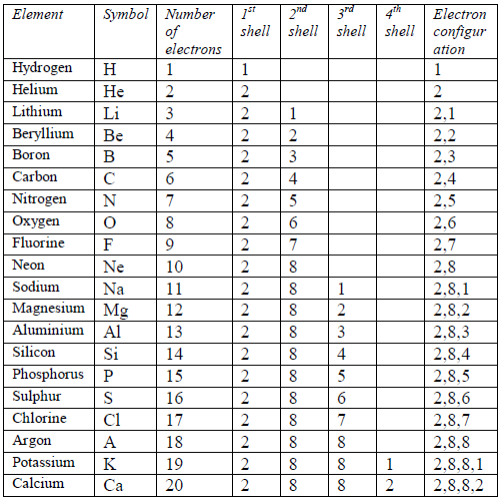

Table 5.2: The electron arrangements of the first 20 elements
After the first 20 elements, the organization of the electrons becomes increasingly complicated. The third shell (n = 3) can be occupied by a maximum number of 18 electrons
At this stage, you will not be asked to work out electron arrangements beyond element 20 (calcium), but you should be able to understand the electronic structures involving more electrons (for example bromine with the arrangement 2:8:18:7).
Energy Shell Diagrams
Draw energy shell diagrams

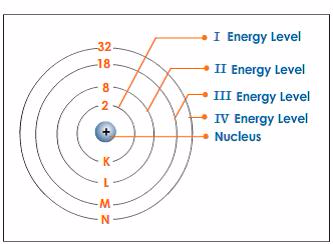

Energy Shell Diagram
Atomic number, Mass number and Isotope
Relationship between Atomic Number and Number of Protons
Relate atomic number with number of protons
All atoms of one element have the same number of protons. This is called the atomic number (or proton number) of that element.It is given by the symbol Z.
No two elements can have the same atomic number. Sodium atoms have 11 protons. This is what makes them different from all other atoms. Only sodium atoms have 11 protons, and any atom with 11 protons must be sodium atom.

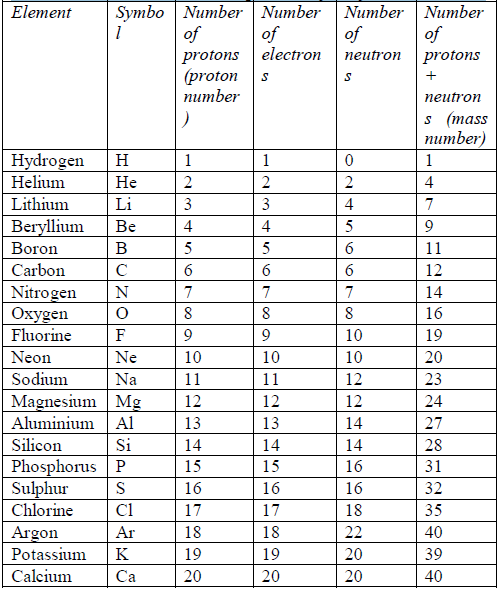

In the same way, an atom with 6 protons must be carbon atom.Also any atom with 7 protons must be nitrogen atom. So, you identify an atom by the number of protons in it. There are 109elements altogether. Of these, hydrogen has the smallest atoms, with only 1 proton each. Helium atoms have 2 protons each.Lithium atoms have 3 protons each, and so on up to meitnerium atoms, which have 109 protons each. Table 5.3 shows the first20 elements arranged according to the number of protons they have.
Every atom has an equal number of protons and electrons, so the atomic number also tells us the number of electrons in that atom.In any given atom of an element, the number of neutrons has no effect on the identity and properties of that particular element. It is the number of protons and electrons that determine the identity and properties of any given element. The number of neutrons only affects the mass, since each one of them has the same mass as that of a proton.
Mass Number of an Atom from Numbers of Protons and Neutrons
Calculate mass number of an atom from numbers of protons and neutrons
Protons alone do not make up all the mass of an atom. The neutrons in the nucleus also contribute to the total mass. The mass of the electrons can be regarded as so small that it can be ignored. As a proton and a neutron have the same mass, the mass of a particular atom depends on the total number of protons and neutrons present. This is called mass number (or nucleon number). The mass number of an atom is found by adding together the number of protons and neutrons. It is given by the symbol A. Table 5.3 shows the mass number of the first 20 elements, arranged in order of increasing atomic mass (mass number).
If the mass number and atomic number for any given atom are known, then its sub-atomic composition can be worked out.
The mass number = number of protons + neutrons in an atom. Sodium atom has 11 protons and 12 neutrons, so the mass number of sodium is 23. Since the atomic number is the number of protons only, then:
Mass number – atomic number = number of neutrons. So, for sodium atom, the number of neutrons = (23-11) =12. You can also take into account the fact that, because the number of protons is always equal to the number of electrons, then the number of electrons in sodium atom is simply 11. The same rule can be applied to work out the sub-atomic composition of any element.
These two relationships are useful:
- Number of electrons = number of protons = atomic number
- Number of neutrons = mass number (A) – atomic number (Z).
The Concept of Isotope
Explain the concept of isotope
Atoms of the same element may have different numbers of neutrons. In a normal situation, atoms of the same element will have the same number of neutrons. However, many cases occur in which two atoms of the same element contain the same number of protons but different numbers of neutrons. Having equal number of protons, these atoms must also have equal numbers of electrons. However, the differing numbers of neutrons cause the atoms to have different mass numbers. An element showing such properties is said to show isotopy and the varieties of the atom are called isotopes of the element.
Therefore, isotopy can be defined as the tendency of atoms of one element to posses the same atomic number but different mass numbers (atomic masses). Isotopes can be defined as atoms of the same element with the same number of protons but different numbers of neutrons, or as „atoms of the same element with the same atomic number but different atomic masses‟.
The isotopes of an element have the same chemical properties because they contain the same number of electrons. It is the number of electrons in an atom that decides the way in which it forms bonds and reacts with other atoms. However, some physical properties of the isotopes are different. The masses of the atoms differ, and therefore other properties, such as density and rate of diffusion, also vary.
Many isotopes (like tritium) are unstable. The extra neutrons in their nuclei cause them to be unstable so that nuclei break spontaneously (that is, without any extra energy being supplied), emitting certain types of radiation. They are known as radioisotopes.
Notation for isotopes
In order to distinguish between different isotopes of the same element in writing symbols and formulae, a simple system is adopted. The isotope of an element, say X will have the symbol X, AZ , where A is the mass number of the isotope and Z is the atomic number of any atom of X. Thus, for all isotopes of one element, Z is constant, and A varies because there are different numbers of neutrons in the different isotopes of the element. For example, the three isotopes of carbon are expressed as 12C6, 13C6, and 14C6. Chlorine has two isotopes: 35Cl17 and 37Cl17 . Since A represents the total number of neutrons and protons in the nucleus of an atom (mass number/atomic mass), and because Z is the number of protons (atomic number), then the number of neutrons in the nucleus of a given isotope is given by:Number of neutrons in the nucleus = A – Z
Relative atomic masses
As we have seen, most elements exist naturally as isotopes. Therefore, the value we use for the atomic mass of an element is an average mass. This takes into account the proportions (abundance) of all the naturally occurring isotopes. If a particular isotope is present in high proportion, it will make a large contribution to the average.
Example
A sample of chlorine gas contains 75% of the isotope 35Cl17 and 25% of the other isotope 37Cl17 . What is the relative atomic mass of chlorine?
Solution
To work out this problem, simply multiply the mass number ofeach isotope with the abundance and sum up the products thus:
This average value for the masses of atoms of an element is known as the relative atomic mass (Ar).Therefore, the relative atomic mass of chlorine is 35.5 (i.e., Ar =35.5).
Chapter summary
An atom is the smallest indivisible particle of an element that takes part in a chemical change. The three sub-atomic particles are protons, electrons, and neutrons.
Electronic configuration is the arrangement of electrons around the nucleus. An atom consists of a nucleus containing protons and neutrons, surrounded by electrons in shells.
Atomic number is the total number of protons in the nucleus of an atom.
Mass number is the total number of protons and neutrons in the nucleus of an atom. Isotopy is the tendency of atoms of one element to possess the same atomic number but different mass numbers (atomic masses).
Isotopes are atoms of the same element with the same number of protons but different numbers of neutrons.
Relative atomic mass is the ratio of the average mass of one atom of an element to one-twelfth of the mass of an atom of carbon-12.
Review questions
Question Time 5
A.1. An atom is electrically neutral because it has _____.
- equal numbers of protons and electrons
- more protons than electrons
- more electrons than protons
- equal numbers of protons and neutrons
2. Chemical bonding between atoms to form molecules involves the electrons in _____.
- the inner shells only
- the outer shells only
- in both the outer and inner shells
- the penultimate shells only
3. The arrangement of electrons in shells around the nucleus is called _____.
- electronic arrangement
- electronic configuration
- electronic structure
- electronic mosaic
4. The maximum possible number of electrons in a shell numbered 4 is _____.
- 8
- 16
- 32
- 64
5. Which of the following statements is true?
- Mass number is the same as atomic number.
- The number of protons in an atom is equal to the number of neutrons.
- Atomic number equals to number of protons in an atom.
- Proton number is the same as mass number
6. Which of the following is true about isotopes?
- Atoms of different elements with the same atomic number.
- Atoms of the same element with the same number of protons but different numbers of neutrons
- Atoms of the same element with the same number of protons but different numbers of electrons.
- Atoms of the same element with the same number of protons and electrons.
7. State the main ideas of the Dalton's Atomic Theory.
8. The particles of which atoms are composed include three of particular interest to a chemist - protons, neutrons, and electrons. What are the masses and charges of these particles?
9. Define the term isotopes
10. Element Q has 17 electrons and 18 neutrons
- What is the atomic number of element Q?
- What is the mass number of element Q?
- Write down the electronic configuration of element Q
11. Use the following information about elements F, G, L, M and J shown below to answer the questions that follow
| Element | Atomic mass | Atomic number |
| F | 16 | 8 |
| G | 19 | 9 |
| L | 23 | 11 |
| M | 12 | 6 |
| J | 40 | 18 |
- Write down the electronic configurations of elements F, G, L, M, and J.
- How many neutrons are present in element G?
12. The relative atomic mass of fluorine is 19.00. Would you expect fluorine to be composed of several isotopes? Explain briefly, why you have given this answer
13. Complete the following statements:
- _____ is the smallest indivisible particle of an element that takes part in a chemical change.
- _____, _____ and _____ are the subatomic particles.
- Electrons move around the nucleus in special paths called_____.
- Atoms of the same element having different numbers of neutrons are called_____.
- _____ and _____ are the isotopes of chlorine.
14. State briefly what you understand by the following terms:
- Proton
- Neutron
- Electron
- Nucleus
15. State the number of all particles that occur in potassium atom (Relative atomic mass 39, atomic number 19)
16. Sodium has a relative mass of 23 and its atomic number is 11.
- Draw simple diagrams to show the particles which make up
- a sodium atom
- a sodium ion
- Give a brief explanation of the differences between the particles in 10(a) (i) and (ii).
17. The numbers of protons, neutrons, and orbital electrons in particles A to F are given in the following table:
| Particle | Protons | Neutrons | Electrons |
| A | 3 | 4 | 2 |
| B | 9 | 10 | 10 |
| C | 12 | 12 | 12 |
| D | 17 | 18 | 17 |
| E | 17 | 20 | 17 |
| F | 18 | 22 | 18 |
- a neutral atom of a metal.
- a neutral atom of a non metal
- an atom of a noble gas
- a pair of isotopes
- a cation (positive ion)
- an anion (negative ion)
REFERENCES
- Arora, G. (2006). Chemistry Formulae. Readwell Publications. New Delhi.
- Garg, V.C. (2006). Chemistry Formulae. Academic (India) Publishers. New Delhi.
- Holderness, A., Lambert, J. & Thompson, J.J. (1987). A New Certificate Chemistry (6th ed.). Clays Limited, St Ives Plc. London.
- Tanzania Institute of Education (1995). Secondary School Chemistry, Book One. NPC – (KIUTA). Dar es Salaam
